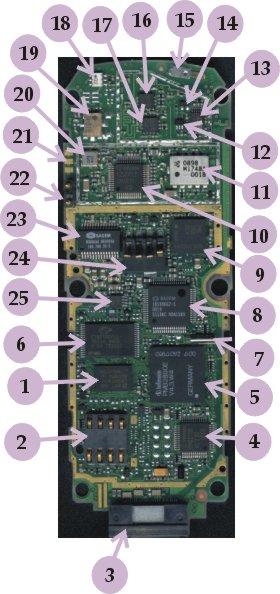

- AMD 29L800BT; Flash, 512K x 16-Bit
(top boot)
- Sim card connector
- Bottom connector
- Infineon PMB2709: Speech Coprocessor.
Provides coding such as EFR, HR
- Infineon PMB2800E; GSM baseband controller.
Higold series. Based on 80C166 (16 bit microcontroller)
- Cypress CY62126; SRAM, 8k x 16
- 32.768kHz crystal
- Sagem Asic
- Infineon PMB2905; Analog interface
IC (GAIM). Interfaces analogue signals (I/Q, voiceband, PA-control,
charging control signals) to the digital domain
- Infineon PMB6250; Multi band
GSM RF tranceiver including PLL and VCO
- Kyocera YK512DDC 0898M1748A; VCO:
GSM: Tx 880 to 915
DCS: Tx 1710 to 1785
- Philips Semiconductors BC857BS; PNP
general purpose double transistor
- Analog Devices; NIY
- BAV99W; Silicon Switching Diode
- Antenna connector
- RF Micro Devices RF2173; 3V 900MHz
Power Amplifier, GPRS Compatible
- RF Micro Devices RF2174; 3V 1800MHz
Power Amplifier
- Diplexer GSM / DCS
- SAW filter for 1800MHz ??
- SAW filter
- Connector for side switches ??
- Connector for vibrator
- Sagem D0806; Power management
- Connector to Battery
- TelCom TC56 ??, 150 mA, LDO with shutdown
|
|
|
|
 |
|
|
|
- 32.768kHz crystal

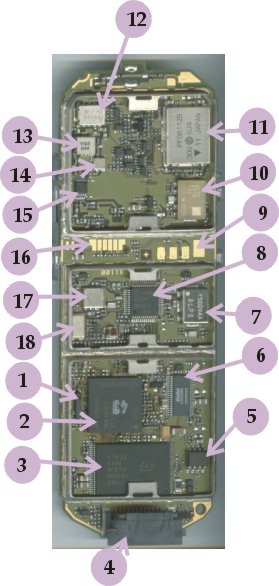

- Infineon E-GOLD+ V1 PMB6850E, GSM/GPRS(!)
Single-Chip-Baseband IC and DSP.
- ST M59DR008E; 8 Mbit (512KB x16,dual
bank, page) low voltage Flash
- Bottom connector
- E2PROM
- Power supply IC
- VCO
- Infineon PMB6250 V2; SMARTi GSM multi
band multi slot RF transceiver
- PCB pads to Battery
- Tx VCO
- Hitachi PF08112B; Power amplifier
- Diplex filter
- SAW Filter (?)
- Epcos B4153, balun (?)
- 2362 (?) NIY
- SIM card connector contacts
- Epcos B4843 Balun for 360.0MHz
- 13MHz crystal
|
|
